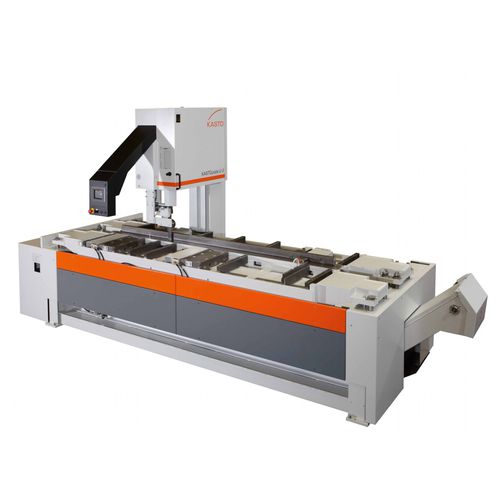

Band saw KASTObloc U 5
for metalstraveling-headlongitudinal

band saw
band saw
band saw
band saw
band saw
Add to favorites
Compare this product


Characteristics

Technology
band
Treated material
for metals
Other characteristics
semi-automatic, vertical, traveling-head, longitudinal
Circular saw blade diameter

5,450 mm
(215 in)

Description

Is it your job to cut different dimensions from different plates and blocks from your existing material using the longitudinal cutting method? Does the majority of your cutting tasks consist of cutting light to medium blocks or plates? Then you will find the right sawing machine for your cutting task here. By utilizing the longitudinal cutting method, KASTO block and plate sawing machines make it possible to configure different cross-section dimensions from billets and plates, rectangular or flat materials. • Ideal for cutting remnant pieces • The footprint is reduced by approx. 50% since the machine moves instead of the workpiece. • The traversing and pivoting operating panel guarantees maximum overview and safety. • Highly dynamic and excellent material handling • The machine is installed on the floor and can be repositioned if needed. • Integrated powered chip removal brush, coolant system and chip conveyor (discharge level 745 mm) • Cutting length from 2,100 up to 4,100 mm in 1,000 mm increments • Cutting depth preselection
