band saw / for metals / fully automatic / horizontal
maxcut A 10x 16 KASTO Maschinenbau GmbH & Co. KG



  • Technology:


  • Treated material:

    for metals

  • Other characteristics:

    fully automatic, horizontal, high-performance, large format, gantry type

  • Round piece diameter:

    Min.: 500 mm

    Max.: 1660 mm

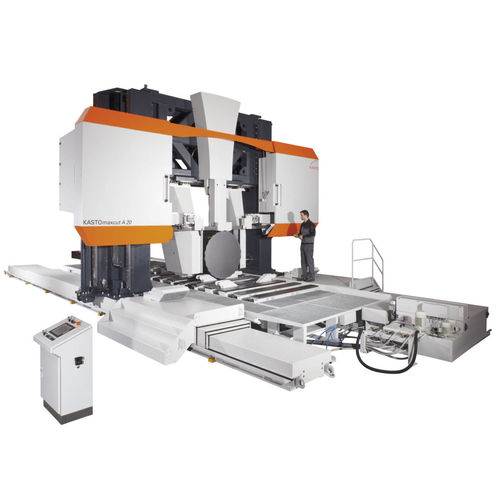

These automatic superior performing bandsawing units in gantry are exclusively designed for expansive material dimensions, ingot molds, slabs, marine crank shafts, open die forgings, forged shafts, turbine shafts and and large tools of all material and quality that are rather tedious to cut sch as Inconel, Titanium and Hastletoy. The powerful design and the unmatched rigidity of this expansive bandsaw ensures supreme vibration absorption and hence reduced cutting times.

There are several choices of of design sizes and table lengths available to cater to all fields of application. Furthermore, this device can be ordered with a wide range of accessories for specific adaptation abilities. The standard equipment ships with horizontal clamp units that travel with the help of spindles or hydraulically. The frame of the saw is can be completely adjusted with the with the materials height through light scanner. Other features of this saw include Kasto BadControl supervision of deviation, pre-tensioned hydraulic carbide assistance of saw table, electronic and hydraulic supervision of of saw blade tensioning and chip conveyor.
