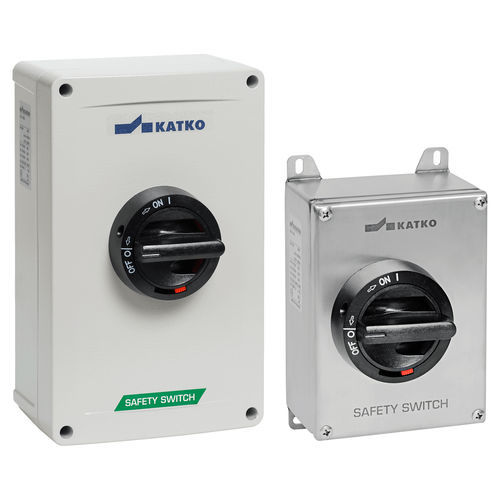

ATEX disconnect switch KEA 480 A4EX 2XM40PEX KST16MEXlow-voltagesafetyenclosed
Add to favorites
Compare this product
Characteristics
- Voltage level
- low-voltage
- Other characteristics
- IEC, AC, enclosed, 4-pole, safety, ATEX
- Primary current
40 A, 63 A, 80 A, 100 A
- VAC
400 V, 415 V, 690 V
Description
• Conforming to Directive 2014/34/EU, EN 60079-0 (2012), EN 60079-31 (2014)
• Suitable for use in Zone 22 (Category 3D)
• IP66
• Frontal impact test of 7 Joules
• Temperature range from -20 °C to +40°C
• Available in aluminium and stainless steel
• Padlockable with three locks
• Door interlock with defeat mechanism
• ATEX cable glands included
• Tested according to IEC 60947-3
• Available as EX EMC
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size - 2.5-35
Cable Gland - 2xM40
Color - Standard
Enclosure - A4
Enclosure Type - Aluminium
IP Rating - 66
Operation - Front-operated
Switch type - Load Break Switch
Weight (kg) - 2.4
