Articulated robot MT400N6-axishandlingfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 6-axis
- Function
- handling, for assembly, dispensing
- Mounting
- shelf
- Application domain
- for heavy loads
- Other characteristics
- compact, high-precision
- Payload
400 kg
(881.849 lb)- Reach
3,503 mm, 4,319 mm
(137.91 in, 170.04 in)- Repeatability
0.5 mm
(0.0197 in)
Description

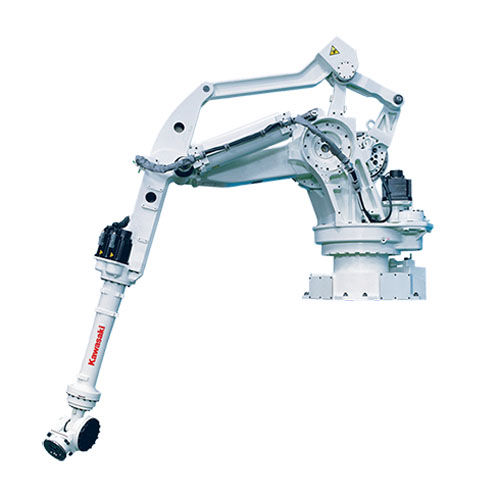

The shelf-mounted MT400N robot has a payload capacity of 400 kg, maximum horizontal reach of 3,503 mm and vertical reach of 4,319 mm, and was designed for vertical motion . Along with powerful motors, Kawasaki's original link design for JT3 (arm up-down) gives the robot the power to lift heavy loads without the use of bulky and limiting counterweights, maximizing the robot’s motion range and allowing for a compact footprint.
Applications
Material Handling, Machine Tending
Supported Controllers
F02
