Articulated robot KJ3147-axispaintingwall-mounted
Add to favorites
Compare this product
Characteristics
- Type
- articulated
- Number of axes
- 7-axis
- Function
- painting
- Mounting
- wall-mounted
- Other characteristics
- safety, explosion-proof
- Payload
15 kg
(33.069 lb)- Reach
3,100 mm
(122.05 in)- Repeatability
0.5 mm
(0.0197 in)- Speed
1,500 mm/s
- Operating temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Weight
720 kg
(1,587.3 lb)
Description

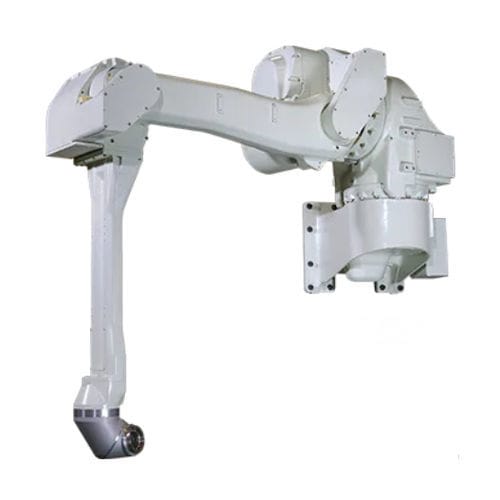

The wall mounted, 7-axis KJ314 explosion-proof painting robot features a 3R (Roll, Roll, Roll) hollow wrist with inner diameter of 70 mm to accommodate hoses as well as a slim and lightweight body with a wide motion range. Thanks to its 7th axis, the robot offers a high degree of freedom for hard-to-reach painting areas. Painting equipment can be easily mounted on the upper arm.
Applications
Painting
Supported Controllers
E25（Japan, Asia）/ E35（America, Canada） / E45（Europe）
