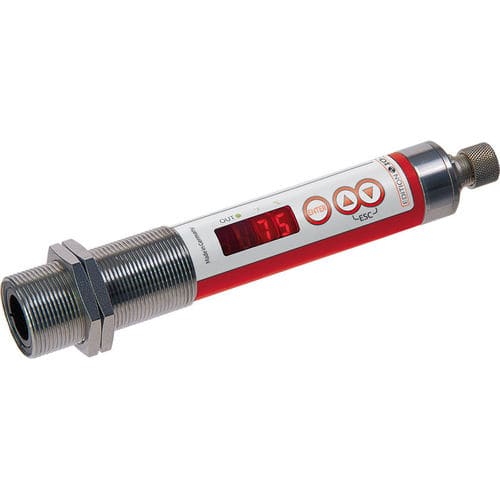

digital pyrometer / screw-in / fixed / IO-Link
CellaTemp® PK 29 Keller ITS (Infrared Temperature Solutions)

{{requestButtons}}

Characteristics

  • Display:

    digital

  • Configuration:

    screw-in, fixed

  • Other characteristics:

    IO-Link, with LED display

  • Applications:

    for aluminum, for reflective materials

  • Temperature:

    Min.: 150 °C (302 °F)

    Max.: 800 °C (1,472 °F)

Description

The CellaTemp® PK 29 is equipped with a special UV blocking filter, thus avoiding that the measurement is affected by daylight. This pyrometer also responds in a substantially less sensitive way to reflective external radiation from nearby hot objects than conventional devices working at short wavelengths. Therefore, the CellaTemp® PK 29 can be used for a variety of applications in the metal-working industry and, in particular, for temperature measurements of aluminium and bright metals at low temperatures. Thanks to the UV blocking filter, it is also suitable to measure processes where diodes, Nd:YAG or CO2 lasers are used for heating. This high-energy laser radiation does not affect the measurement.

Features:
- Temperature range from 150 to 800 °C
- Universally configurable switching output
- Precision lenses provide high optical Resolution
- IO-Link interface
- All parameters adjustable by control keys on the sensor or via interface from the plant control
- Test function to be activated by control key or control signal
- Easy installation thanks to M30 screw thread mounting
- Bright high-intensity LED display
