infrared thermometer / fiber optic / with LED display / fixed
CellaTemp® PKF 66 Keller ITS (Infrared Temperature Solutions)

{{requestButtons}}

Characteristics

  • Technology:

    infrared, fiber optic

  • Display:

    with LED display

  • Configuration:

    fixed

  • Other characteristics:

    with laser pointer, with fiber optic, IO-Link, non-contact

  • Applications:

    for metals, for harsh environments, for ceramics

  • Temperature:

    Min.: 700 °C (1,292 °F)

    Max.: 1,800 °C (3,272 °F)

Description

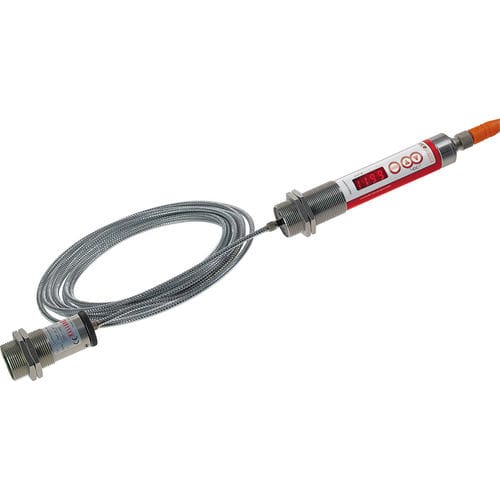

The electronic unit of the CellaTemp® PKF 66 is separated from the measuring head. A fibre optic cable transmits the infrared radiation to the electronic unit. The measuring head is eligible to use in ambient temperatures up to 250 °C without needing auxiliary cooling systems. The fibre optics version is also used in confined spaces or powerful electromagnetic fields. The fibre optics cable can have a length of up to 50 m.

Features:
- Temperature range from 700 to 1800 °C
- Fibre optics cable with a length up to 50 m possible
- Switching output universally configurable
- Precision lenses provide high optical resolution
- IO-Link interface
- All parameters adjustable via control key
- Test function to be activated by control key or control signal
- Easy installation thanks to M30 screw thread mounting
- Bright hight-intensity LED display
