molten metal pyrometer / IR / bi-color / with LED display
CellaCast PT 180 Series Keller ITS (Infrared Temperature Solutions)

{{requestButtons}}

Characteristics

  • Technology:

    IR, bi-color

  • Display:

    with LED display

  • Configuration:

    portable, mobile

  • Other characteristics:

    USB, non-contact

  • Applications:

    for molten metals, for flame-heated furnaces

  • Temperature:

    Max.: 2,400 °C (4,352 °F)

    Min.: 750 °C (1,382 °F)

Description

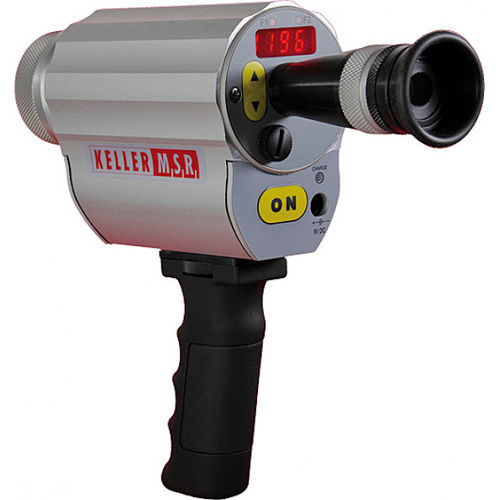

The mobile pyrometer CellaCast PT 180 is specifically developed for temperature measurement of liquid metals. It is used to monitor the temperature at the runner of a blast furnace, cupola furnace or at continuous casting machines. The peculiarity of the CellaCast PT 180 is the high-resolution optics, and thus a small measuring field. This allows a reliable measurement even from a distance of 30 m.

Features:
- Non-contact, non-wearing temperature measurement of molten metal from a safe distance
- Range: 750 – 2400 °C
- Special filter captures IR radiation from surfaces free of slag and oxides
- ATD automatically identifies the target and detects its temperature
- Dual wavelength technique provides accurate data despite dust or steam in the sight path
- Parallax-free imaging with diopter compensation
- Traffic light status indicator in the viewfinder shows when distance to target is ideal
