infrared thermometer / with LED display / screw-in / fixed

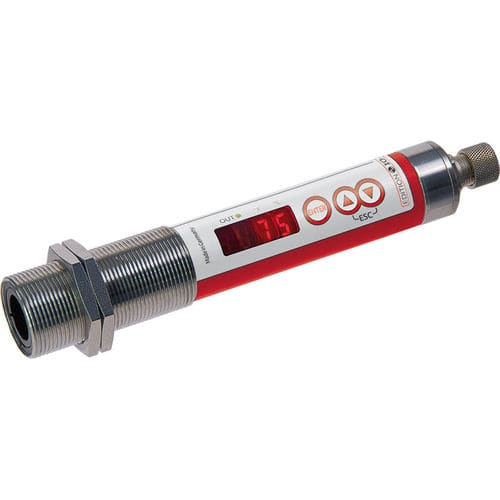

CellaTemp® PK 42 Keller ITS (Infrared Temperature Solutions)

{{requestButtons}}

Characteristics

  • Technology:

    infrared

  • Display:

    with LED display

  • Configuration:

    screw-in, fixed

  • Other characteristics:

    IO-Link

  • Applications:

    for glass surfaces, for the glass industry

  • Temperature:

    Max.: 2,500 °C (4,532 °F)

    Min.: 500 °C (932 °F)

Description

In the range of 4.6 - 4.9 µm glass has an emissivity of almost 100%. Above 5 µm, atmospheric influences, such as humidity or water vapour, have an adverse influence on the measurement readings. The CellaTemp® PK 42 is provided with a blocking filter with a spectral sensitivity of 4.6 - 4.9 µm. allowing it to measure the temperature from the near surface area of the glass. Owing to its wavelength, changes in thickness, different types of glass, or varying moisture contents in the atmosphere do not affect the measurement reading.

Features:
- Temperature range from 500 to 2500 °C
- Universally configurable switching output
- Precision lenses provide high optical Resolution
- IO-Link interface
- All parameters adjustable by control keys on the sensor or via interface from the plant control
- Test function to be activated by control key or control signal
- Easy installation thanks to M30 screw thread mounting
- Bright high-intensity LED display
