Bevel gear reducer 3035, 3036

right angle1 - 5 Nmfor sit/stand workstation height adjustment

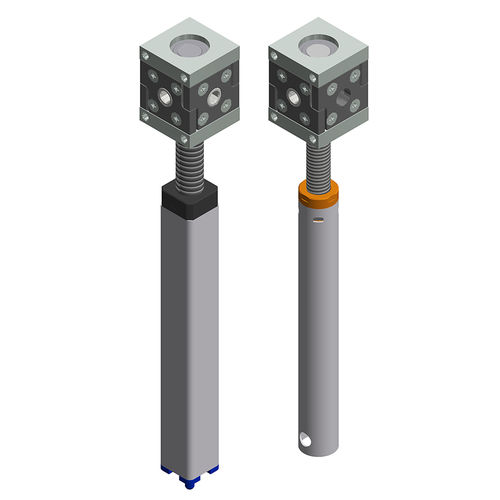

Bevel gear with spindle unit 3035 | 3036 Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields. A simple screw fastening and a hexagonal bolt enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Ratio in direction of spindle: 1:1 oder 1.5:1 Very slim size 35 mm x 35 mm Drive torque on gear head for application with several spindle units: max. 4 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Support tube round Ø 20 mm or square 22 mm Suitable for manual use as well as for electromotive drives Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3 mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https:// www.ketterer.de/en/downloads/instructions
