Bevel gear reducer 3034 series
right angle1 - 5 Nmhigh-rigidity

bevel gear reducer
bevel gear reducer
Add to favorites
Compare this product


Characteristics

Type
bevel
Shaft orientation
right angle
Torque
1 - 5 Nm
Performance
high-rigidity
Applications
for workstation height adjustment

Description

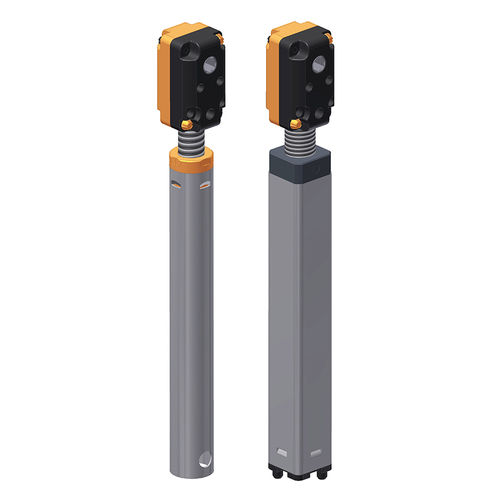

Bevel gear with spindle unit 3034 Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fi elds. A simple screw fastening and a hexagonal bolt enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Very slim size 25.8 mm x 25.8 mm Drive torque on gear head for application with several spindle units: max. 3.5 Nm Housing made of glass fi ber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Support tube round Ø 20 mm or square 22 mm Suitable for manual use as well as for the electromotive drive Variant key 3034.00-V01: spindle SG12x16P4 RH with a round support tube 3034.00-V02: spindle SG12x16P4 RH with a square support tube 3034.00-V03: spindle Tr14x3 RH with a square support tube 3034.00-V04: spindle SG14x16P4 RH with a square support tube Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will fi nd them at: https:// www.ketterer.de/en/downloads/instructions 
