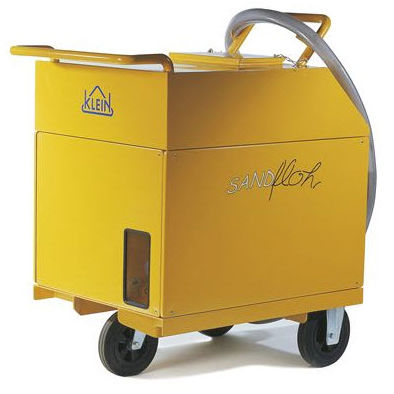

Silo filling system 103
bagfor sandcompact

silo filling system
silo filling system
silo filling system
silo filling system
silo filling system
silo filling system
Add to favorites
Compare this product


Characteristics

Container type
silo, bag
Product applications
for sand
Other characteristics
compact, mobile
Throughput

Max.: 25 p/min

Min.: 0 p/min

Volume

100 l, 200 l, 500 l
(26.4 gal, 52.8 gal, 132.1 gal)

Description

Specific Features - independant of external air and electric power supplies during the sand filling process at the rail vehicles - compact design, low weight - ease of operation - filled from sand storage silos, big-bag equipments or sand bags - sand filling hose including filling nozzle (registered design) - sand filling capacity approx. 10 l/min - internal air and electric power supply sufficient to fill approx. 1000 l up to approx. 4000 l (type 200-4) brake sand - integrated dust extraction - protected control elements for electric and pneumatic functions - colour RAL 1028 yellow For the dust-free loading we recommend our filling systems that are suited to the filling openings of the mobile sanding systems type Sandfloh. The filling equipment can e. g. be installed at a sand silo or a big-bag equipment.
