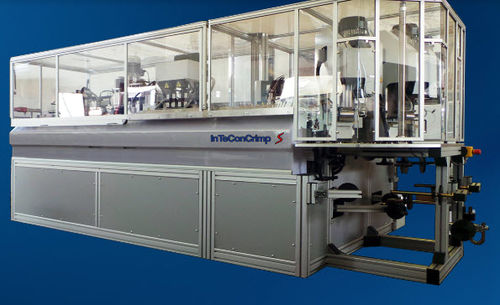

Automatic assembly machine Intecon S

connectortest

– Feeding system: up to 6 different wires, wire length freely programmable – Parallel and crossing wires as well as loops or one-side wire terminations are producible – Min wire length = 150 mm (Parallel combinations), 55 mm (Free wire) – Simultaneos processing of different connectors types, number of ways, coding versions etc. – Max Production lot: 44 contact positions for Rast 2,5 24 contact positions for Rast 5 – Connector loading system without machine stop – Terminating Unit with fine adjustment termination height – Test device for the correct wire position in the connector – Electrical conductivity test (optional) – Coding station (optional) – Test device of the correct key cutting (optional) – Test device of the correct height of closed connector (optional, according to the rast connector)) – Selective destroying unit of bad harness (optional) – User friendly HMI based on Windows O.S. – ADSL internet connection for remote assistance – Conveyor guide for good harnesses – Reject branch for bad harnesses – CE conforming TECHNICAL DATA Power supply: 3×400 VAC, 50 Hz, 10kVA Pneumatic connection: 7 bar Compressed air consumption: 200 Lit/min Sound pressure level < 75 dBA Dimensions: 3500 x 2250 x h 2200 (safety shield open) Weight: 950 Kg
