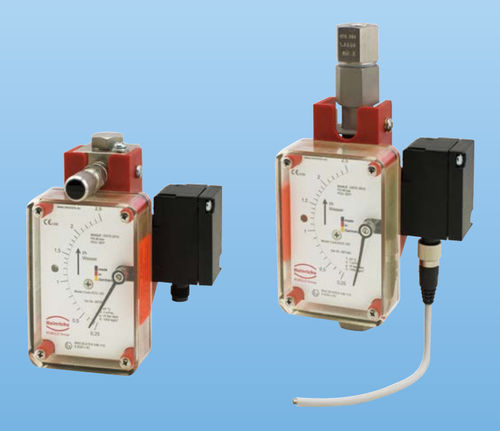

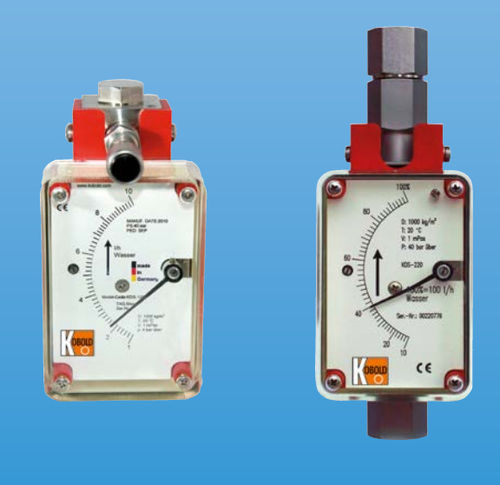

Variable-area flow meter KDSfor liquidsfor gasin-line
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Fluid
- for liquids, for gas
- Installation
- in-line
- Communication
- analog output
- Volumetric flow rate
Max.: 200 l/h
(52.8 us gal/h)Min.: 0.1 l/h
(0 us gal/h)- Process temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)- Process pressure
Max.: 420 bar
(6,091.58 psi)Min.: 40 bar
(580.15 psi)
Description
Variable-Area Flowmeter/-switch-All Metal-Low Volume KDS
Measuring range: 0,1 - 1 L/h ... 20 - 200 L/h water
5,0 - 50 NL/h ... 600 - 6000 NL/h air
Connection: ¼ NPT
Material: st. st.
Max. pressure: 40 bar (64 bar) on request up to 420 bar
Max. temperature: -40...+130 °C
contact:-25..+100°C, analogue output: -40..+100°C
Accuracy: ± 3 % FS
Option: contacts, analogue output, up/downstream diff. pressure regulator
