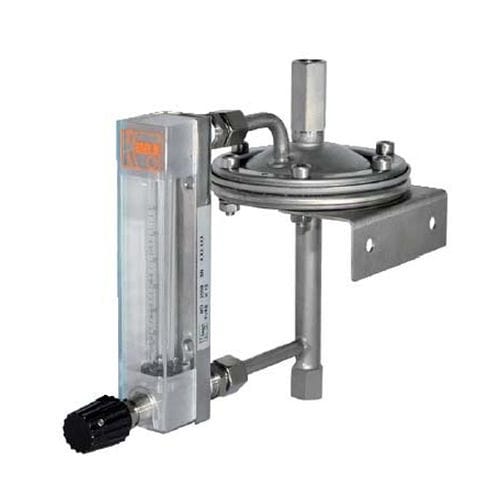

variable-area flow meter / for water / for air / stainless steel
KDF, KDG-2 series KOBOLD Messring GmbH

{{requestButtons}}

Characteristics

  • Technology:

    variable-area

  • Fluid:

    for water, for air

  • Other characteristics:

    plastic tube, stainless steel, in-line

  • Process pressure:

    Max.: 16 bar (232.06 psi)

    Min.: 0 bar (0 psi)

  • Process temperature:

    Max.: 100 °C (212 °F)

    Min.: 0 °C (32 °F)

  • Volumetric flow rate:

    Max.: 160 l/h (42.3 us gal/h)

    Min.: 0.3 l/h (0.1 us gal/h)

Description

Measuring range:
0.25 - 2.5 ... 16 - 160 l/h water
0.5 - 5 Nl/h ... 500 - 5000 Nl/h air
Connection: ¼" NPT, G ¼ female thread, hose nozzle 8 mm
Material: stainless steel
pmax: 16 bar
tmax: 100°C
Accuracy: ±2.5 % qG = 50 %
Option: contacts, up / downstream pressure regulator
