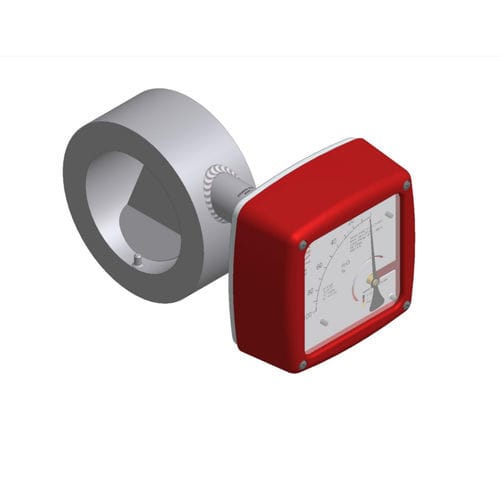

Mass flow meter TSK for waterfor gasDN25 - 1"
Add to favorites
Compare this product
Characteristics
- Technology
- mass
- Fluid
- for water, for gas
- Pipe diameter
- DN50 - 2", DN25 - 1", DN100 - 4", DN80 - 3", DN225 - 9", DN275 - 11", DN300 - 12", DN200 - 8", DN40 - 1"1/2, DN32 - 1"1/4, DN250 - 10", DN175 - 7", DN65 - 2"1/2, DN125 - 5", DN60 - 2"1/4, DN90 - 3"1/2, DN150 - 6"
- Installation
- flange
- Material
- stainless steel, PTFE, steel, polypropylene
- Communication
- 4-20 mA, PROFIBUS PA, HART
- Supply voltage
- DC
- Protection level
- ATEX, IP65
- Volumetric flow rate
Min.: 0.5 m³/h
(17.7 ft³/h)Max.: 1,500 m³/h
(52,972 ft³/h)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 300 °C
(572 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 40 bar
(580.15 psi)- Precision
2.5 %
- Repeatibility
0.5 %
Description
The Kobold flap flowmeter type TSK is suitable for flow measurement of liquid products in pipes. The special advantage is that it can be used for all directions of flow. It shows the current flow rate in volume or mass per unit in time. The meter’s design makes it ideal for processes under difficult and adverse operating conditions. The devices are available with additional electrical equipment for process monitoring and control.
Measuring range:
0.5 - 3.5... 200 - 1500 m³/h water
Connection: wafer flange DN25 ... DN500, ANSI 1 ... 20"
Material: steel, stainless steel, PTFE, Hastelloy®
pmax: PN 40, PN16 (DN100 - 200), PN10 (from DN250)
Temperature range:
-40 ... +200°C (-40 ... +300°C on request)
Accuracy: ±2.5 % of full scale
Options: contact, 4 - 20 mA, ATEX, Hart®, Profibus® PA
