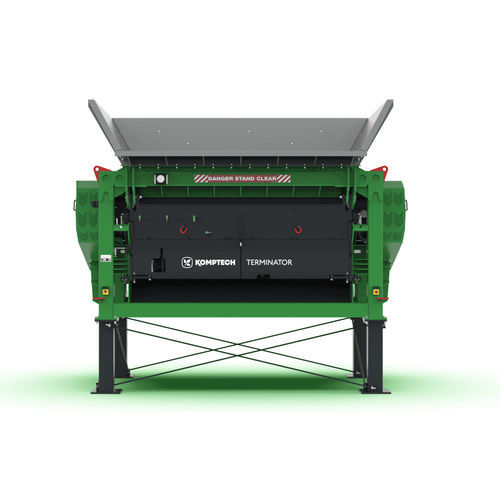

Single-shaft shredder TERMINATOR direct
for wasterugged

single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
single-shaft shredder
Add to favorites
Compare this product


Characteristics

Number of shafts
single-shaft
Application
for waste
Other characteristics
rugged
Power

Min.: 75,000 W

Max.: 320,000 W

Output

Min.: 15 t/h
(9 lb/s)

Max.: 75 t/h
(46 lb/s)

Rotor diameter

1,050 mm
(41 in)

Rotational speed

Min.: 14 rpm
(88 rad.min-1)

Max.: 28 rpm
(176 rad.min-1)

Operating weight

Min.: 13.6 t
(15 us ton)

Max.: 15.8 t
(17.4 us ton)

Description

The Terminator direct is a stationary low speed, high torque single-shaft shredder for all types of waste. Power is delivered by an electric motor with minimal maintenance and transfered to the shredding drum by a mechanical drive with optimum efficiency. Everything possible The Terminator is able to shred the most difficult materials. Everything is shred to the desired particles size. Applications with drum/opposing comb system variants range from coarse pre-crushing to defined shredding. Coarse or fine The continuous cutting gap adjustment allows tailoring of the produced particle size to subsequent usage. Completely swivelling of the counter comb provides perfect accessibility for maintenance of the shredding area. Efficient drive The cost-effective mechanical drive offers lowenergy costs due to high efficiency. The installation into the plant chain is simple: Set up - connect - power on. Further features are two speeds for adaption to material and automatic reverse control.

VIDEO

Exhibitions

Meet this supplier at the following exhibition(s):

IFAT 2024
IFAT 2024

13-17 May 2024 München (Germany) Hall Vide - Stand B6.404
