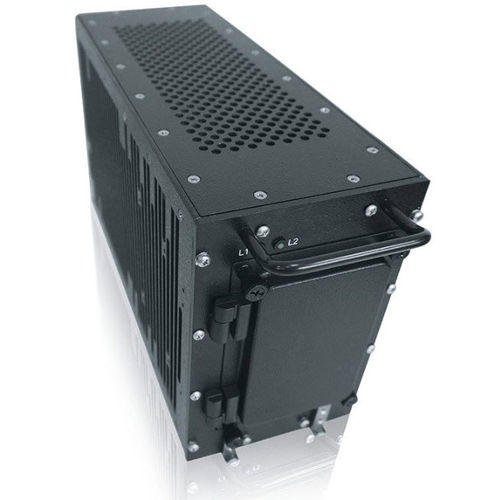

Server computer ACE Flight™ 4780

Intel® Xeon E3Ethernetgigabit Ethernet

The Kontron ACE Flight™ 4780 MODMAN integrates the Intel® E3-1505L, 4-Core processor and includes 32 gigabytes (GB) of ECC DDR4 memory and up to 1 terabyte (TB) of fixed SSD storage. It supports extensive connectivity and bandwidth with features including a 4G/LTE modem with global access, an L2/L3 managed Gigabit Ethernet (GbE) Switch with 11x GbE Ports, 5 Rx (fixed), 2 Tx/Rx (Configurable) ARINC 429 channels, 1 Rx ARINC 717, and 2x Coax antenna connections for diversity. Its rugged 4MCU air flow through design meets harsh environmental aircraft requirements in a low power and lightweight unit. The platform supports a Satellite Modem and can be configured to include different modem solutions (project based). Bringing next generation performance to commercial aircraft, the ACE Flight 4780 MODMAN is a complete, highly integrated application-ready platform specifically designed to meet sophisticated communication application requirements.
