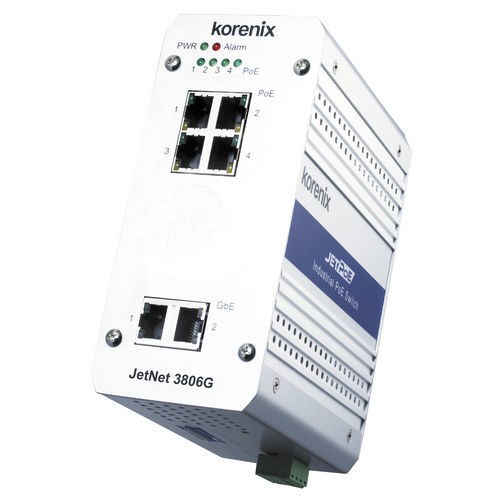

Booster ethernet switch JetNet 3806G

unmanaged6 ports10/100BaseT(X)

Industrial 4 + 2 GbE Booster Switch Four 10/100 TX plus two 10/100/1000TX uplink ports Vehicle : DC 12V~24V input, deliver 4 port @48V 802.3af compliant : Total power budget is 60W* with  15.4W per port Two Ethernet ports for larger uplink bandwidth of surveillance Support QoS for optimizing video and VoIP stream Fault for active warning of port failure -25~60℃ operating temperature Product Introduction JetNet 3806G is an Industrial PoE Boost Switch designed with 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports to ensure high-bandwidth uplink connection for large-scale surveillance in transportation system networks. JetNet 3806G integrates Korenix patented vehicle PoE technology – the 12V~24V to 48V power booster for making the deployment of standard PoE IP cameras feasible on buses, railcars, ships, etc. Moreover, the compact size with aluminum alloy metal enclosure allows JetNet 3806G to reliably operate under -25~60℃ wide temperature range applications.
