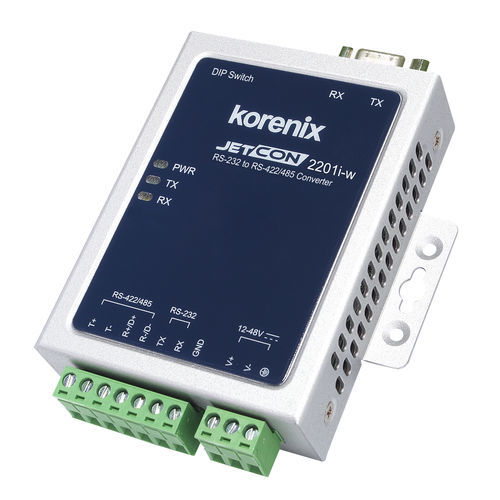

Protocol converter JetCon 2201-w/ 2201i-w

RS-232RS-485RS422

Industrial RS-232/422/485 Converter Automatic RS-232 to RS-422/485 converter Auto baud rate and direction control High speed up to 921.6 Kbps RS-422/485 3000VDC isolation protection (JetCon 2201i-w/2201i-wTB) Supports RX bias and terminal resistor Easy configuration by DIP switch without resetting power Din-Rail mount and wall mount robust aluminum case Terminal block 5-pin at RS-232 (JetCon 2201i-wTB) -40~70°C operating temperature for hazardous environment RoHS applications - - Product Introduction The standard RS-232 protocol has been widely used in most of industrial computer systems for serial port communication. However, it has its limitations in terms of transmission speed, range and networking capabilities. Furthermore, the RS-422 and RS-485 standards have overcome the limitations mentioned above by utilizing different voltage lines for data and control signals. Hence, JetCon 2201-w series, the RS-232 to RS422/485 converter becomes very popular to be deployed in the industrial communication network for longer distance and higher reliability.
