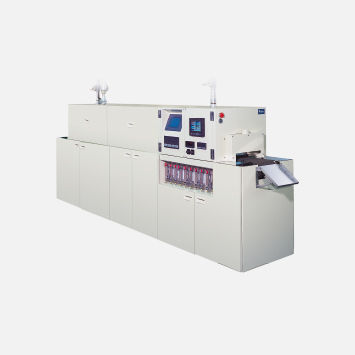

Drying furnace 810 seriesmuffleconveyorelectric
Add to favorites
Compare this product
Characteristics
- Function
- drying
- Configuration
- muffle, conveyor
- Heat source
- electric
- Atmosphere
- hydrogen
- Other characteristics
- high-temperature, continuous, compact
- Maximum temperature
1,000 °C
(1,832 °F)- Width
530 mm, 610 mm
(20.87 in, 24.02 in)- Height
1,360 mm
(53.54 in)- Depth
3,000 mm, 3,700 mm
(118.11 in, 145.67 in)
Description
These compact conveyor furnaces for experiments (R&D) are fully equipped to support all kinds of atmospheres in whitch electronic components are manufactured including air, N2, and hydrogen (reducing) atmospheres.
The purge chambers installed at the entrance and exit allow excellent stability and reproducibility of the atmosphere inside the furnace.
Features
Compact with small footprint
Ideal for small-lot production of multiple product types.
The adoption of a muffle allows continuous treatment in various atmospheres.
Maintainability is improved by one-touch open/close covers.
Includes a touch panel.
Includes a weekly timer as standard.
Compact furnace size
