ø 4" - 33"
Consistently high underflow density with variable feed density
Underflow is stackable or conveyable
Available in sizes ranging from 4 to 33 inch diameter with replaceable liners
Cyclostack and accessories can be retrofit onto existing cyclones

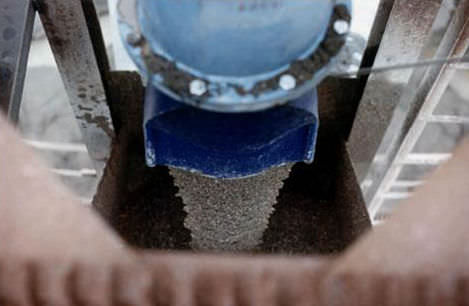

Krebs Sand Stacking Cyclones are designed for use in solids dewatering applications. The Krebs CycloStack® along with an extended overflow pipe and siphon control assembly attaches to a standard Krebs Cyclone to minimize the moisture content in the cyclone underflow. The attachment provides a low cost way of automatically controlling the dewatering and discharge concentration of the cyclone underflow, allowing direct discharge of the underflow onto a conveyor belt or in a pile. This occurs even with fluctuating feed conditions
