gas analyzer / concentration / benchtop / continuous

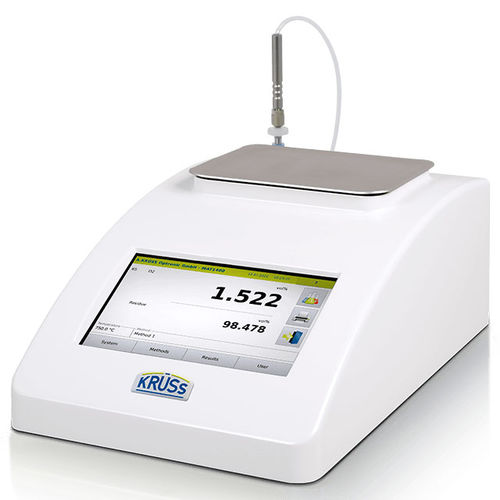

MAT1400 A. KRÜSS Optronic GmbH

{{requestButtons}}

Characteristics

  • Measured entity:

    gas

  • Measured value:

    concentration

  • Configuration:

    benchtop

  • Other characteristics:

    continuous, automatic, monitoring, online, with touchscreen, for MAP, inherently safe, laboratory, with oxygen sensor, intrinsically safe, digital, simultaneous, multi-parameter, high-performance, ecological, single-sensor, for quality control, data acquisition, with data logger, calibration, for the food industry, optical, cost-effective, high-definition

Description

The zirconium dioxide sensor (ZrO2) of the MAT1400 measures the oxygen concentration over the entire measurement range between 0 and 100 volume per cent. Especially in case of a very low concentration, it will achieve an excellent accuracy of ±0.001 volume per cent. The MAT1400 is therefore suitable for the inspection of oxygen-free as well as oxygen-rich modified atmospheres. It can also be used in the cold storage room from ambient temperatures of 10 °C.

• Easy and intuitively to use via touch-screen – even by untrained personnel
• Low-drift zirconium dioxide sensor (ZrO2) in the measuring range from 0 to 100 vol.-%
• Short measurement period
• Only a small sample volume required
• Interface package for convenient transfer of measured values (USB, Ethernet, RS-232)
• Any number of measurement methods for the monitoring of the measurement process
according to method, batch, product and/or production line incl. limit value monitoring
• Inteligent unser administration
• Complete documentation of measured values (including audit trail)
• Flexible data export
• Compliance with global standards
