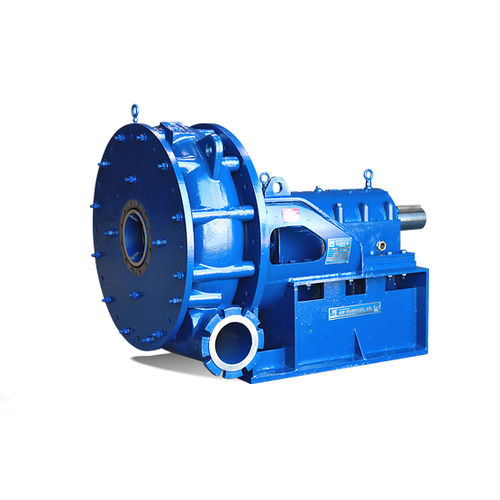

Water pump LSA-S
slurryelectriccentrifugal with volute

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water, slurry
Operation
electric
Technology
centrifugal with volute
Mobility
stationary
Domain
for the mining industry
Applications
discharge, process, feed, transport, dredging, for power stations
Material
cast iron, hard metal
Other characteristics
lubricated, dry, combined
Flow

Min.: 20 m³/h
(706.29333 ft³/h)

Max.: 18,000 m³/h
(635,664.00099 ft³/h)

Pressure

17 bar
(246.564 psi)

Head

Min.: 5 m
(16'04" )

Max.: 150 m
(492'01" )

Fluid temperature

Min.: 5 °C
(41 °F)

Max.: 120 °C
(248 °F)

Description

Premium design white cast iron pump for long service life handling severe slurries. The maintenance-friendly single-wall construction and heavy section white cast iron wet end combined with the cartridge bearing assembly provide maximum reliability, a long service life and ease of maintenance.
