water pump / electric / for nuclear applications / multicellular
RHM KSB

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    electric

  • Domain:

    for nuclear applications

  • Other characteristics:

    multicellular, high-pressure, cooling, feed, injection, medium-pressure, control

  • Flow:

    Max.: 300 m³/h (10,594.4 ft³/h)

    Min.: 0 m³/h (0 ft³/h)

  • Pressure:

    220 bar (3,190.83 psi)

  • Head:

    Max.: 2,100 m (6889'09")

    Min.: 0 m (0'00")

Description

Function
Pump for safety-related and auxiliary systems.

Description

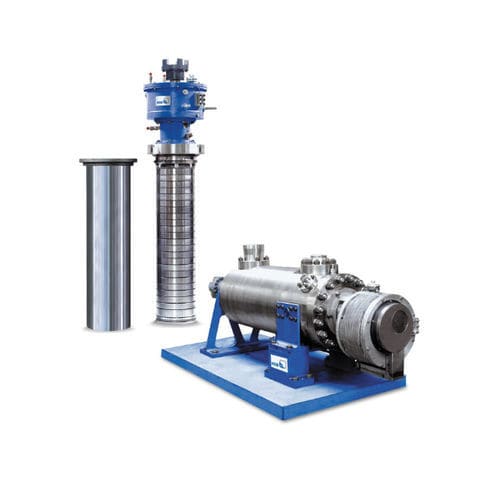

Horizontal, multistage barrel pull-out pump.

Applications
Core flooding, emergency cooling and residual heat removal systems RHRS, chemical and volume control systems CVCS, high-pressure charging, control rod drive systems CRDS, high- and medium-pressure safety injection systems HPSI / LPSI / MHSI / LHSI, emergency feed water systems EFWS, start-up and shutdown feed water systems SSS.
