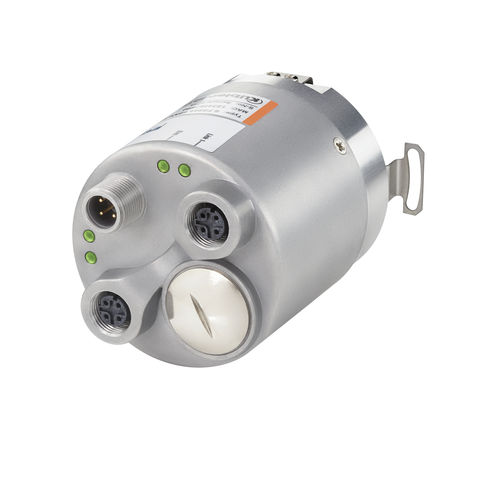

Absolute rotary encoder Sendix F5888
opticalmagnetic16-bit

absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
absolute rotary encoder
Add to favorites
Compare this product


Characteristics

Type
absolute
Technology
optical, magnetic
Absolute encoder resolution
16-bit
Construction
hollow-shaft, multi-turn
Output signal
CANopen, Modbus, Ethernet/IP, with CANopen interface
Protection level
IP65, IP67
Other characteristics
high-resolution
Housing diameter

58 mm
(2.28 in)

Shaft diameter

12 mm, 16 mm
(0.47 in, 0.63 in)

Description

High precision Resistant Without gear with 100% magnetic insensitivity Intelligent Scan Technology™ – electronic field bus encoders. The absolute encoders Multiturn Sendix F5868 / F5888 with CANopen interface and patented Intelligent Scan Technology™ are particularly high-resolution optical encoders without gears with 100% magnetic insensitivity. 32 bit total resolution, through hollow shaft up to 15 mm and CANopen functionalities according to current encoder profile. Reliable and insensitive Robust bearing construction in Safety-Lock™ design for resistance to vibration and installation errors. Due to IP67 protection and wide temperature range from -40°C to +80°C also suitable for outdoor use. Patented Intelligent Scan Technology™ with all single and multiturn functions on one OptoASIC - thus highest reliability, a high resolution of up to 32 bit and 100% magnetic insensitivity. Latest field bus performance CANopen with current encoder profile. LSS services for configuring the node address and baud rate. Variable PDO mapping in memory. Universal Scaling Function. 32 bit total resolution (16 bit MT + 16 bit ST).
