Incremental draw-wire encoder C120
absolutemulti-turnanalog

incremental draw-wire encoder
incremental draw-wire encoder
incremental draw-wire encoder
incremental draw-wire encoder
Add to favorites
Compare this product


Characteristics

Type
incremental, absolute
Construction
multi-turn
Output signal
analog, SAE J1939, CANopen, SSI, EtherCAT, Ethernet/IP, ProfiNet, PROFIBUS DP
Material
aluminum, stainless steel
Protection level
IP67
Applications
industrial
Housing diameter

120 mm
(4.72 in)

Length

120 mm
(4.724 in)

Description

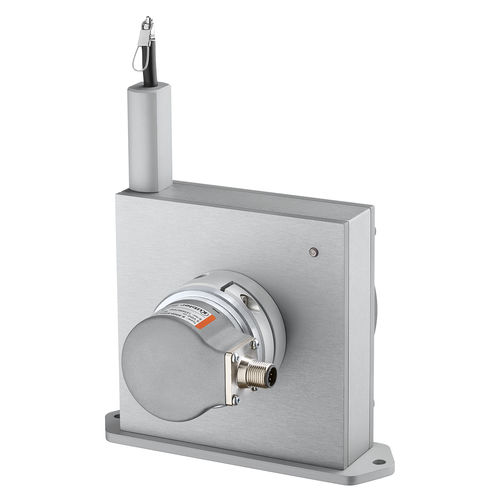

Draw wire encoder - suitable for the highest requirements. The C120 draw-wire encoder can be used up to a measuring length of 6 meters. This draw wire can be combined with the proven Kübler Sendix encoders with incremental or absolute interface as well as with analog sensors. Benefits Robust The titanium-anodized aluminum housing and the stainless steel wires allow for using the mechanics even in harsh conditions. Wear-free wire exit thanks to special plain bearing guide. Various wire types and wire fastenings. Versatile High traverse speed, up to max. 10 m/s. High acceleration, up to max. 140 m/s². Quick fastening by means of 2 screws. Various connection possibilities available. Interchangeable encoders (interchangeable installation).
