LCD display / IP67 / RS485 / waterproof
DSP-52 Kutai Electronics Industry Co., Ltd.

Add to MyDirectIndustry favorites
LCD display / IP67 / RS485 / waterproof LCD display / IP67 / RS485 / waterproof - DSP-52
{{requestButtons}}

Characteristics

  • Type:

    LCD

  • Other characteristics:

    IP67, RS485, waterproof

Description

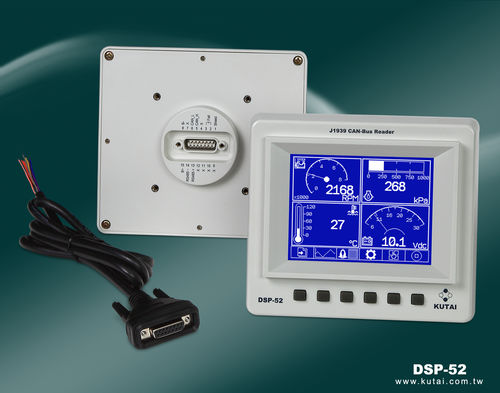

The DSP-52 is a CAN Bus J1939 Reader. Equipped with large LCD display screen with user friendly graphical display and event log. Connection via RS485 with IP67 water resistance, suitable for multi application and best solution for obtaining engine data from generators that are equipped with CAN Bus J1939 ECU (Engine Control Unit).

5.7" large single color LCD with graphical display
Adjustable LCD brightness
Hidden multi-function menu
Single click to return to graphical display menu
4 pages display arrangement with total of 16 graphical display readouts and 4 readouts per page
8 item data tracking and curve graph displayed
Records up to 100 failure code history (ADTC)
1 failure warning dry contactor output
Push button and warning beeper
RS-485 port for system remote access
Remote communication with PC (Use DSP-52 Remote Software)
J1939 database display page (67 items)
Provide one DB-15 waterproof connector (Length 1.2M)
Application : Engine, Genset, Car, Boat
