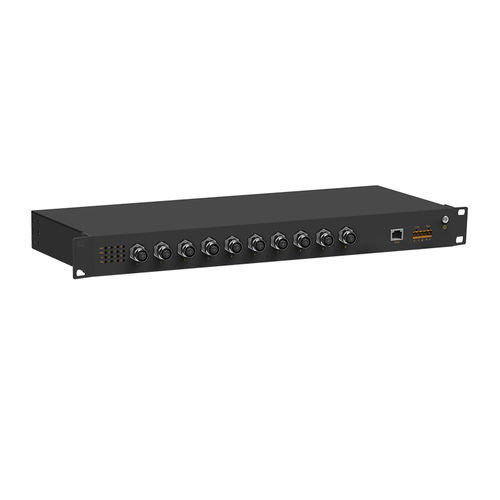

Managed ethernet switch Aquam8512A-1U

10 ports10/100BaseT(X)layer 3

The Aquam8512A-1U series managed rack mountable onboard M12 switches, specially designed for rail industries, support up to 2 Gigabit copper ports and 8 10/100Base-TX ports. Aquam8512A-1U supports a wide range of operation temperature from -40°C to +75°C, and meets the EN50155, EN50121 and other rail industry standards. The switches support layer 3 routing functions like OSPF, redundant ring protocols including DRP and RSTP. They support VLAN and GVRP, flexible networking and partitioning, multicast, video multicast, and rich network management functions including SNMP. Aquam8512A-1U can be widely deployed in onboard PIS, CCTV systems, and industrial applications asking for anti-vibration and high EMC performance. Key Features Supports 10 10/100Base-TX ports or 2 Gigabit copper ports + 8 10/100Base-TX ports M12 connector Supports DT-Ring, STP/RSTP/MSTP, DRP ring protocol and VRRP Supports OSPF layer 3 routing protocol Complies with EN50155 & EN50121
