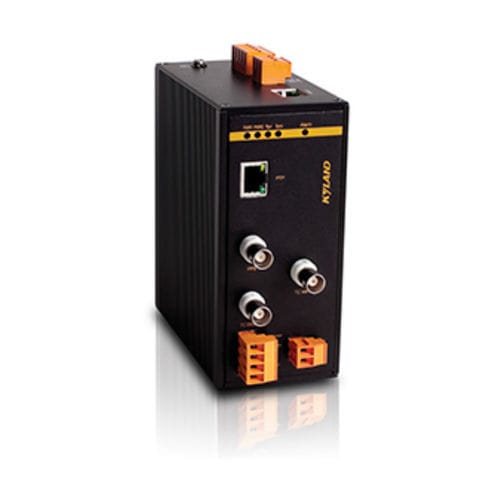

PTP converter PTC1000
TTLDIN railindustrial

PTP converter
PTP converter
Add to favorites
Compare this product


Characteristics

Type
PTP
Bus
TTL
Other characteristics
DIN rail, industrial, single-mode, redundant, pulse

Description

PTC1000 Clock Converter realizes the conversion from PTP to IRIG-B and PPS (Pulse Per Second). This allows the industrial devices that are equipped with IRIG-B clock interfaces and PPS interface to conveniently access PTP network. This provides economic solution for evolving legacy network into future-proofing PTP network and achieve high precision synchronization required in industrial control system. Key Features Support IEEE 1588v2, the synchronization accuracy reaches ±100ns. Support ITU-T.G.8261/G.8262 SyncE, the synchronization accuracy can reach ±50ns with SyncE enabled. Support 1 100Base-FX SC/ST/FC or 1 10/100Base-TX RJ45 IEEE1588 input. Support PPS output, IRIG-B TTL outputs, and IRIG-B AM modulation. Supports IRIG-B000, B001, B002, B003, B004, B005, B006, B007, B120, B121, B122, B123, B124, B125, B126, B127. Complies with IEC 61850-3 and IEEE1613. CE, UL508 certificates.
