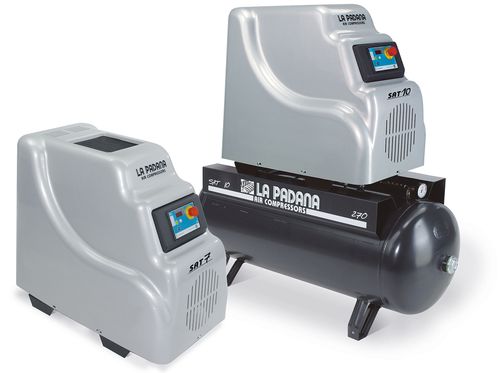

Screw compressor SAT 5,10 series
rotaryairelectrically-powered

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw, rotary
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
lubricated
Application domain
industrial
Other characteristics
tank-mounted
Pressure

10 bar
(145.04 psi)

Flow

Min.: 33 m³/h
(1,165.38 ft³/h)

Max.: 60 m³/h
(2,118.88 ft³/h)

Power

Min.: 4 kW
(5.44 hp)

Max.: 7.5 kW
(10.2 hp)

Description

Rotary screw compressor – Coaxial drive – Electric engine directly linked to the screw unit: allows better yield – Oil separator filter SPIN-ON – Oil filter SPIN-ON – Oil/air cooling through forced ventilation radiator – On/off working – Direct start up – Versions with air tank are equipped with a valve and tank linking line; –Versions with dryers are By-pass equipped.
