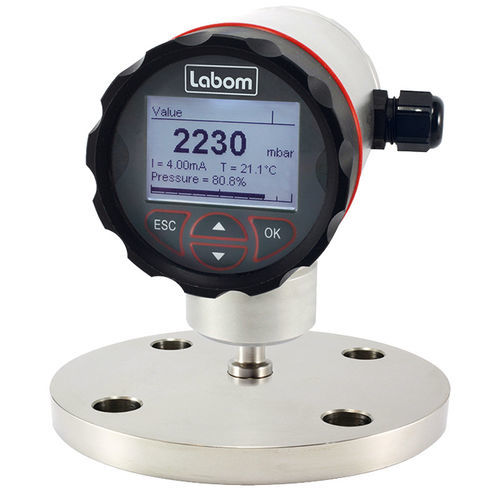

Pressure transmitter with diaphragm seal PASCAL Ci4relativeabsolutemembrane
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, absolute
- Technology
- membrane, piezoresistive
- Output
- 4-20 mA, HART
- Mounting
- threaded, flange
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- EMC, explosion-proof, ATEX, SIL 2, IP65, IP67, IP69K
- Applications
- for the petrochemical industry, for the chemical industry
- Other characteristics
- two-wire, temperature-compensated, programmable, with digital display, with diaphragm seal, high-resolution
- Pressure range
Max.: 600 bar
(8,702.26 psi)Min.: 1 bar
(14.5 psi)- Process temperature
Max.: 400 °C
(752 °F)Min.: -20 °C
(-4 °F)
Description
For relative and absolute pressure. With threaded connection
The ultimate in measuring accuracy, process robustness combined with intuitive and convenient operation – that’s the PASCAL CI4 range. The HART7 standard guarantees flexible integration into control systems and compatibility with divers equipment landscapes
Features
Various process connections for hygienic and sturdy applications
Comprehensive parameterising, simulation and diagnostic functions
Hydrogen compatible
High-resolution graphic display with backlight
Intuitive operation
LAB4Level operating software for level applications
