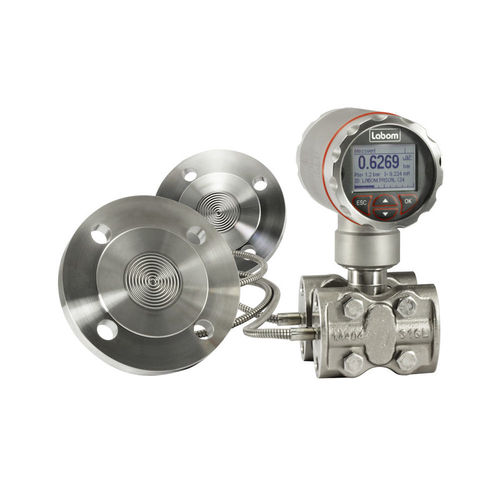

Relative pressure transmitter PASCAL Ci4 Delta P

absolutedifferentialmembrane

For relative and absolute pressure. The ultimate in measuring accuracy, process robustness combined with intuitive and convenient operation – that’s the PASCAL CI4 range. The HART7 standard guarantees flexible integration into control systems and compatibility with divers equipment landscapes Features Reduced-volume design for diaphragm seal systems with small nominal sizes Simultaneous display of differential pressure and static pressure possible Long-term stability of 0.1 % within 5 years Output functions: linear, invers, square root, table function with up to 64 support points Equipped with the LAB4Level operating software, the measuring devices can calculate and display filling level, volume and weight simultaneously Technical aata Ambient temperature - -40…80 °C Accuracy - ≤ 0,075 % Material wetted parts - Stainless steel 316L Other materials on request Material case - Stainless steel Process connection - Diaphragm seal For more detailed information, please refer to the data sheet Process connection -
