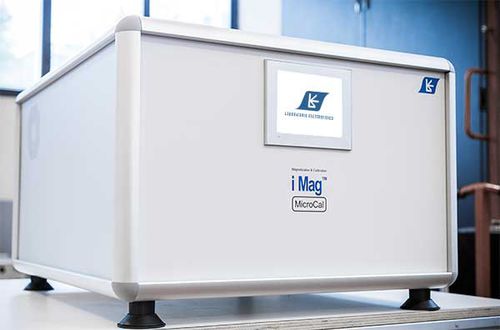

Capacitor discharge magnetizer / high-efficiency / impulse
i Mag™ MICROCAL Laboratorio Elettrofisico

Characteristics

  • Options:

    capacitor discharge, high-efficiency, impulse

Description

The i Mag™ MicroCal Magnetizer is equipped with a touchscreen HMI panel that allows the user to set up the necessary parameters and track the status of a process. With precision control options and high accuracy, i Mag™ MicroCal is a frequent choice for both industrial production and lab research.

KEY BENEFITS
- All-in-one magnetization and demagnetization, as well as treating
- Ability to measure magnetization/demagnetization by means of the fluxmeter or any other - RS232 interfaced instrument, such as gaussmeters, dynamometer, etc.
- Wide range of capacitance and voltage, either low voltage/high capacitance (for wider pulse) or high voltage/low capacitance (short pulse width)
- Ideally suited for mass production and research labs
- Remote service (via LAN or Wi-fi)
- Compact size

TECH SPECS
Voltage: up to 700 V / up to 3000 V
Voltage resolution: 1 V
Capacitance: up to 8000 µF/600 µF and many other combinations
Rated peak current: 30 kA
Power supply: 200/230 V, 50/60 Hz
Dimensions: 555 x 746.5 x 680 mm | 21.8 x 29.4 x 26.8”
Weight: 80 kg – 176 lb

APPLICATIONS
PM inductors (BLDC, IPM, Sync. BL, DC, Hybrid, Sync. RM, shaded poles, linear, voice coil, and induction machines)
Sensors – any shape, single or multiple traces, regular or irregular spaced multi-polar patterns
Other magnetic devices – loudspeakers, watches, and single permanent magnets
