AC/DC hysteresisgraph
AMH-50K-S Laboratorio Elettrofisico

Add to MyDirectIndustry favorites
AC/DC hysteresisgraph AC/DC hysteresisgraph - AMH-50K-S
{{requestButtons}}

Characteristics

  • Type:

    AC/DC

  • Frequency:

    Min.: 0 kHz

    Max.: 50 kHz

Description

High power measurements of rings and strips in DC and AC

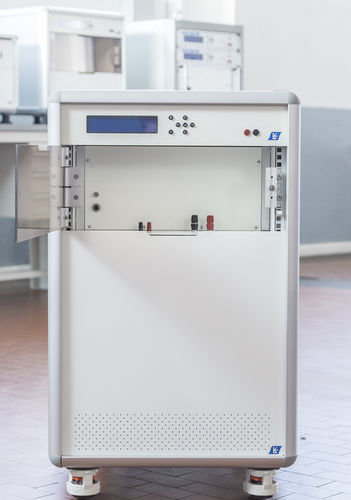

The AMH-50K-S Permeameter is a DC and AC automatic measuring system to characterize rings and strips at high power. It measures DC up to 50 KHz.

FAST & EASY CHARACTERIZATION
automatic measurement of complete DC or AC hysteresis loop, normal magnetization curve, permeability curve
remanence Br, coercivity Hc, saturation values Hsat, Bsat, Jsat, cycle area, relative permeability, losses, losses separation, etc.
easy-to-use Software and Hardware

BASIC CONFIGURATION
Fluxmeter
Arbitrary Function Generator
power amplifier
fast Acquisition Unit
connection tool for ring sample
PC and printer
dedicated software Hyst2015
reference sample, for day-to-day control
