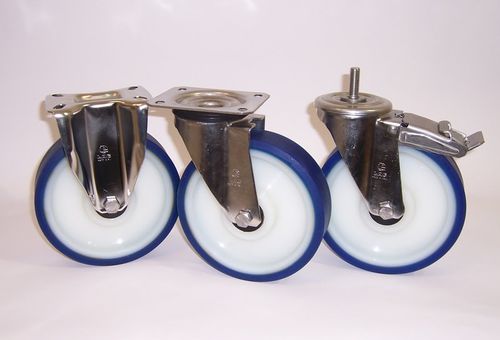

Swivel caster ADINYL SOFT + INOX20base platewith ball bearingwith brake
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, with brake, for medium loads, polyurethane, polyamide, stainless steel
- Load capacity
Max.: 370 kg
(816 lb)Min.: 150 kg
(331 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 100 mm
(3.937 in)- Tread width
Max.: 50 mm
(1.97 in)Min.: 30 mm
(1.18 in)
Description
ADINYL SOFT + INOX20
POLYAMIDE 6 CORE - CAST SOFT POLYURETHANE COATING.
Coated in cast polyurethane hardness 87±3 Shore A.
Wheel centre in high quality polyamide 6.
High load capacity; smooth and noiseless running. Hygienic and high resistance to corrosion, abrasion and shocks.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: standard shielded or stainless steel sealed precision ball bearings; standard or stainless steel roller bearing.
MEDIUM DUTY STAINLESS STEEL CASTORS
Finish: polished.
Top plate with forged central pin in pressed stainless steel-sheet AISI 304.
Thermoplastic dust protection ring.
Swivel fork in pressed stainless steel-sheet AISI 304.
Stainless steel balls AISI 420. Balls retaining ring in pressed stainless steel sheet AISI 304.
