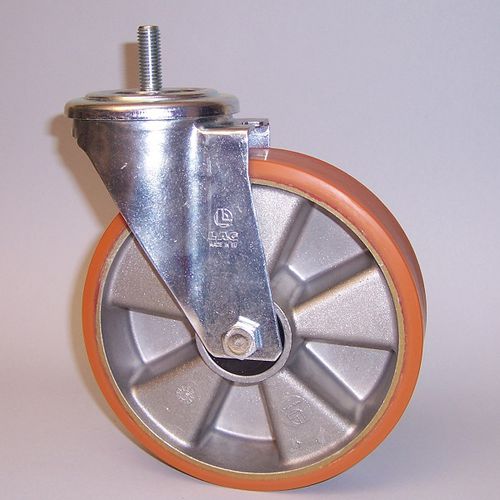

Swivel caster TAU + M22base platerodwith ball bearing
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate, rod
- Other characteristics
- with ball bearing, monobloc, with brake, for medium loads, polyurethane
- Load capacity
Min.: 120 kg
(265 lb)Max.: 300 kg
(661 lb)- Wheel diameter
Min.: 80 mm
(3.15 in)Max.: 200 mm
(7.874 in)- Tread width
Min.: 20 mm
(0.79 in)Max.: 50 mm
(1.97 in)
Description
ALUMINIUM CORE - CAST POLYURETHANE COATING.
Cast polyurethane coating, hardness 95±3 Shore A.
Core in die-cast aluminium alloy.
High load capacity; excellent smooth and noiseless running; high resistance to wear and tear, oils and greases.
Temperature range: -30°C / +80°C (-22°F / +176°F).
Hub with: shielded precision ball bearings; standard roller bearing.
MEDIUM DUTY CASTORS
Finish: electro-zinc plated, white.
Top plate with forged central pin in pressed steel-sheet.
Thermoplastic dust protection ring.
Swivel fork in pressed steel-sheet.
Hardened steel balls.
Balls retaining ring in pressed steel-sheet.
