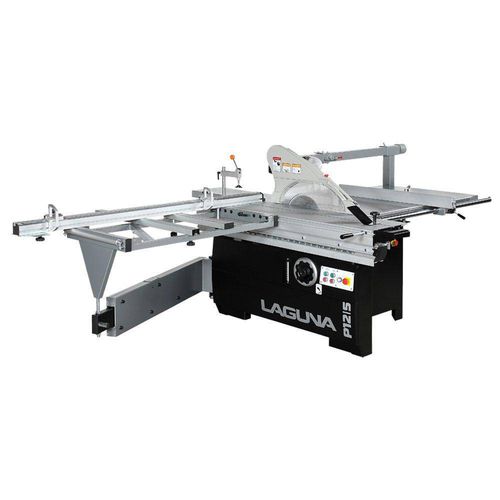

sliding table saw / panel / wood / horizontal
MPSP12-5-0135 Laguna tools

{{requestButtons}}

Characteristics

  • Technology:

    sliding table, panel

  • Treated material:

    wood

  • Other characteristics:

    horizontal, compact

  • Circular saw blade diameter:

    355 mm

Description

The all new P12 panelsaws are here, available with four sizes of sliding tables: 4′, 5′, 8′, and 10′.

The P12|5 was designed as a luxury panelsaw for the demanding pro shop. It has all the features and qualities of the bigger P12|8 but with a smaller stroke and a more compact cabinet.

P12|5 Features 63″ dumbbell sliding table design, 5HP main motor, 3/4 HP scoring and swing-away overhead guard.

The 63″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.

The European style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally.

The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).
