sliding table saw / panel / for steel / automatic
MPSP12-10-0135 Laguna tools

{{requestButtons}}

Characteristics

  • Technology:

    sliding table, panel

  • Treated material:

    for steel

  • Other characteristics:

    automatic, horizontal, precision, heavy-duty, crosscut

  • Circular saw blade diameter:

    300 mm, 350 mm

Description

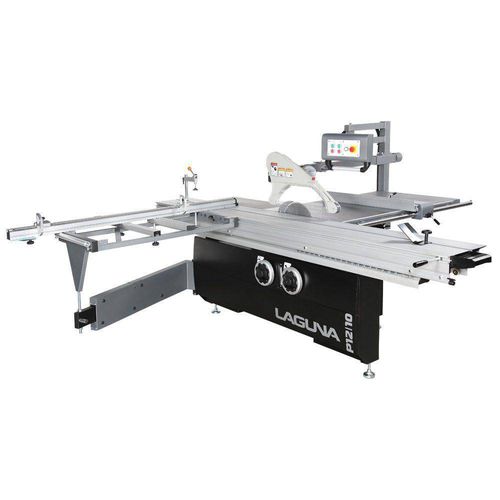

The all new P12 panelsaws are here, available with four sizes of sliding tables: 4′, 5′, 8′, and 10′.

P12|10 Features 126″ dumbbell sliding table design , 7.5HP 3 Phase main motor, 3/4HP scoring, swing-away guard and overhead control ON/OFF.

The 126″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.

The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally.

The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).

The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108″), 45° miter and is ergonomically designed to make it easier to read the tape.

Inside the P12|10 you will find the saw unit is moving on micro-polished solid steel rods for ultimate precision.

The heavy duty motor is equipped with soft start to minimize initial amperage draw.

The P12|10 comes standard with hold-down clamp, rip shoe and push handle.
