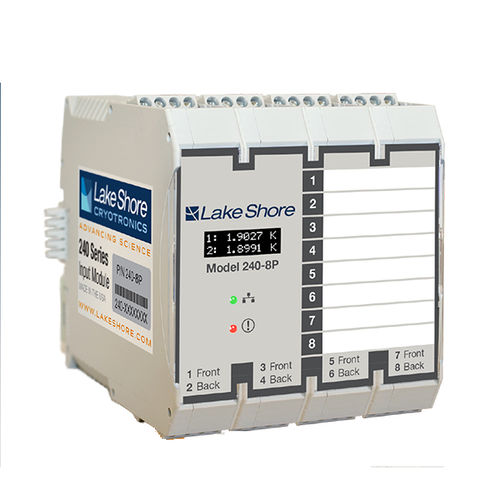

Analog input module 240 seriesModbusremotetemperature
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Bus
- Modbus
- Type
- remote
- Applications
- temperature
- Number of inputs/outputs
- 2-I, 8-I
Description
240 Series Features
Two or eight cryogenic temperature sensor inputs
Supports industry-leading Lake Shore Cernox, platinum, and other RTDs, plus DT-670 diodes
Precision measurement circuitry with on-board conversion to calibrated temperature units
Monitor temperatures down to 1 K and up to 800 K
Current reversal to minimize thermoelectric offsets
Front-mounted OLED screen for temperature and status reporting
Fully configurable through direct USB connection
PROFIBUS-DP communication integrates with distributed PLC-based control architectures
Easy DIN rail mounting with integrated rear connections for shared power and network
