recirculation pump / for wastewater / slurry / electric
AXD-I/AXP-I LANDIA AS

{{requestButtons}}

Characteristics

  • Media:

    for wastewater, slurry

  • Operation:

    electric

  • Priming:

    submersible

  • Type:

    propeller

  • Domain:

    for wastewater treatment, fish farming

  • Other characteristics:

    axial, large, low-pressure, recirculation, drainage, stainless steel

  • Flow:

    Max.: 5000 m³/h (176573.33 ft³/h)

    Min.: 0 m³/h (0 ft³/h)

  • Pressure:

    0.2

  • Power:

    Max.: 18.5 kW (25.15 hp)

    Min.: 1.1 kW (1.5 hp)

Description

Axial pumps designed to pump large volumes of fluid with low back pressure. The pump is mostly used in wastewater treatment plants for the recirculation of sludge, but may also be used in e.g. drainage, and for recirculating in fish farming facilities.

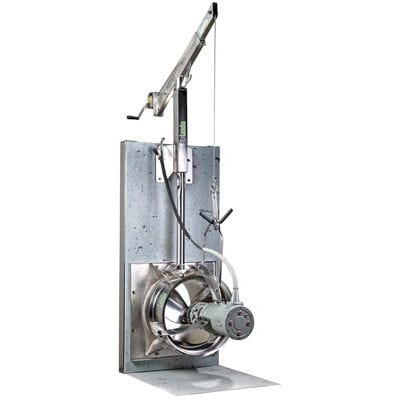

The AXP-I/AXP-I is typically mounted directly onto the outside of a tank wall, but it can also be fitted in-line in a pipe system.

Recirculation pumps in brief:
Motor sizes between 1.1 - 18.5 kW
Output of up to 5,000 m³/h
Pump pressure up to 0.2 bar
Pump sizes of 300, 500 and 800 mm
Available in stainless steel
Available in Ex-specification
