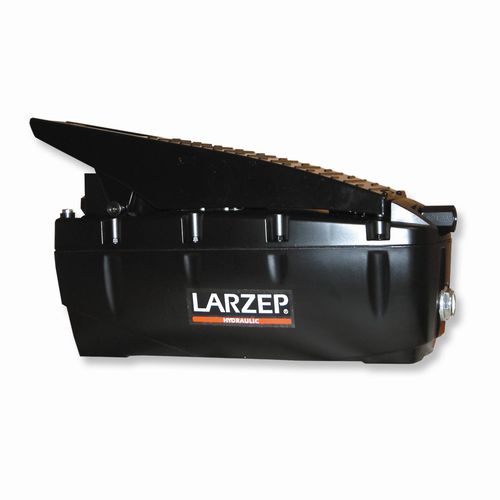

Reciprocating hydraulic pump Z, ZR series

air-driven

On Z models for Single Acting cylinders, the pedal acts as the control valve, by controlling advance, hold and retract functions. In hold  mode, the pump maintains the output pressure. On ZR models, operation is controlled via a push button remote pendant. Double Acting models are fitted with a manual 4-way 3 position control valve. Working pressures 700 bar and 1.000 bar. Easily accessible adjustable safety valve. Air consumption: 400 N l/min. 4, 7, 10 and 20 litres pumps with metallic tank. Z12107 model with base plate as option. Also available aluminium free models.
