Filter / mirror / lens holder
Laser Mechanisms

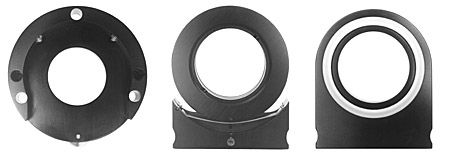

The Laser Mech Lens Mounting System solves the problem of lens removal for replacement and inspection. By using a simple cartridge mounted lens inserted into a side slot in a permanently positioned manifold block, the problems of the traditional threaded, axially inserted lenses are avoided. This innovative mounting method allows removal and replacement of the lens in seconds with no readjustment of the optical alignment and without the removal, replacement or disassembly of any other part of the optical system.
Each assembly consists of a lens mount manifold block with very fine, adjustable lens centering screws and a spring-loaded, lens holder assembly to hold the lens. The lens holder contains all the seals necessary to pressurize the space beneath the lens for use with the Gas Jet Manifold.
Each assembly consists of a lens mount manifold block with very fine, adjustable lens centering screws and a spring-loaded, lens holder assembly to hold the lens. The lens holder contains all the seals necessary to pressurize the space beneath the lens for use with the Gas Jet Manifold.
