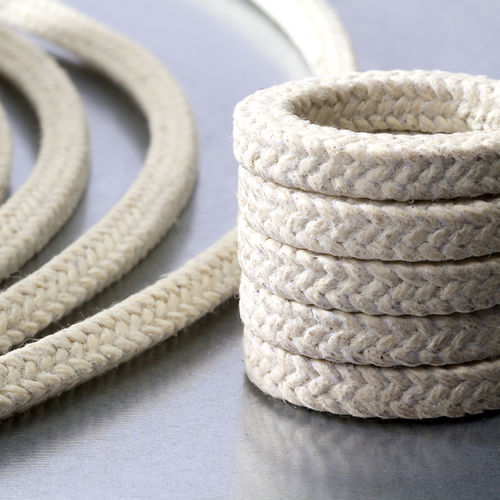

Braided PTFE packing LATTYflon 4789 aramid yarnchemical-resistantfor pumps
Add to favorites
Compare this product
Characteristics
- Material
- PTFE, aramid yarn
- Other characteristics
- chemical-resistant
- Applications
- for pumps, for the chemical industry, for petrochemical applications, for the food industry, for rotary applications, for maritime applications
- Operating temperature
Max.: 275 °C
(527 °F)Min.: -200 °C
(-328 °F)
Description
THE COST-EFFECTIVE ARAMID PACKING
Packing made of aramid/staple rayon compound yarns, each single yarn being impregnated with PTFE using our exclusive "Filcoat"-process, then re-impregnated with a mix of PTFE and inert food-quality lubricant during braiding operation. Available in preformed packing rings, on request. Aramid packing, good mechanical performance in all industries.
Fluids : Slurry fluids
Material : Pumps, rotary movements.
Parameters
Speed : < 20 m/s
pH : 2 - 12
Approvals
PMUC, WRC/WRAS
Type of industries
Chemical, petrochemical, pharmaceutical, food and sugar, pulp and paper mills, power stations and Marine (in particular propeller shaft glands).
