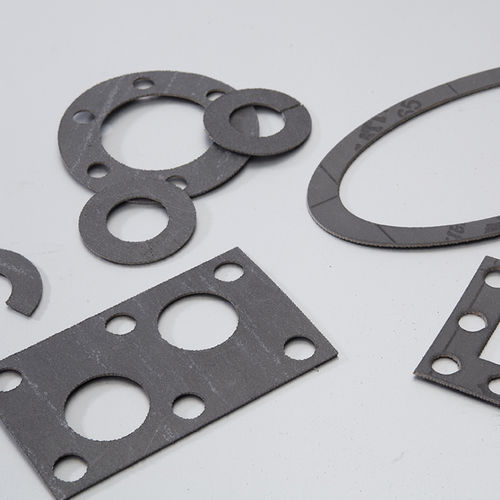

Graphite gasket sheet LATTYcarb 965
carbonsteelaramid

graphite gasket sheet
graphite gasket sheet
Add to favorites
Compare this product


Characteristics

Material
graphite, carbon, steel, aramid
Product applications
for chemical applications, flange
Other characteristics
high-pressure
Temperature limit

Min.: 0 °C
(32 °F)

Max.: 450 °C
(842 °F)

Pressure limit

Min.: 0 bar
(0 psi)

Max.: 150 bar
(2,175.6 psi)

Description

A CARBON SHEET AND GASKET SUPPLE AND EASY TO CUT FOR STATIC SEAL APPLICATIONS Gasket material made of selected carbon and mineral fibres bonded with a mix of synthetic elastomers, compressed to obtain sheet material reinforced with an internal steel wire mesh. A special graphite coating, applied on both faces, makes disassembling operations extremely fast and minimises flange corrosion. Limitation: for highly corrosive fluids, prefer LATTYgold 5 ACID. Multi-purpose aramid/carbon seal with metal reinforcement for all industries Fluids : High-performance material which meets most applications: steam, high-pressure applications, all hydrocarbons. Material : Particularly suited for large dimension gaskets. Parameters Type of industries General purpose gasket: Chemical and petrochemical industries, power production.
