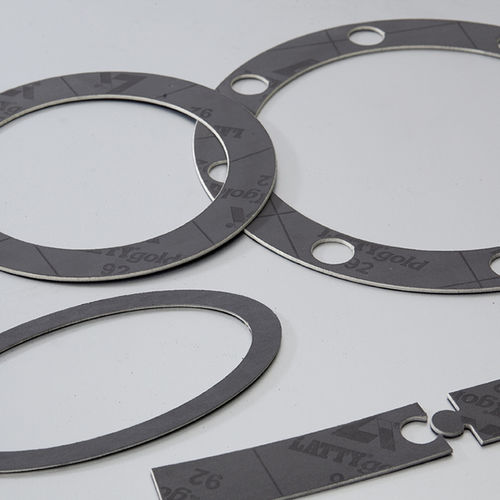

Graphite gasket sheet LATTYgold 92 G2Faramidfor chemical applicationsflange
Add to favorites
Compare this product
Characteristics
- Material
- graphite, aramid
- Product applications
- for chemical applications, flange, for the petrochemical industry, petroleum, for pipes
- Other characteristics
- high-temperature, corrosion-resistant
- Temperature limit
Max.: 440 °C
(824 °F)Min.: 0 °C
(32 °F)- Pressure limit
Max.: 100 bar
(1,450.4 psi)Min.: 0 bar
(0 psi)
Description
ARAMIDE SHEET EFFICIENT, RELIABLE, MULTIPURPOSE FOR STATIC SEAL APPLICATIONS
The anti-adhesive treatment applied on LATTYgold 92 has been replaced on LATTYgold 92 G2F with a special graphite coating on both faces, which makes disassembling operations extremely fast and minimises flange corrosion. Limitation: for high-temperature steams, prefer LATTYcarb 96 G2F and for highly corrosive fluids LATTYgold 5 ACID. Multi-purpose aramid gasket for all industries with nonstick coating
Fluids : For all fluids
Material : Pipes flanges
Parameters
Type of industries
General purpose gasket: Chemical and petrochemical industries, power production.
