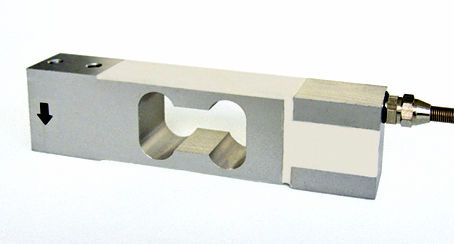

Beam type load cell AZ 0-10 series
single-pointstrain gaugeanalog

beam type load cell
beam type load cell
Add to favorites
Compare this product


Characteristics

Form
beam type, single-point
Technology
strain gauge
Output signal
analog
Other characteristics
IP65
Rated load

Max.: 100 kg
(220.46 lb)

Min.: 10 kg
(22.05 lb)

Description

This item is suitable for platforms of 400 x 400mm, with the analog output being between 0 and 10VDC and a minimum resistance of 2,000ohm. The fixed gain and alloy aluminum load cell are important advantages, while the combined error is <+/-0.2% F.S. The manufacturer also takes pride in the IP65 protection class rating for this high-performance, high-quality product.
