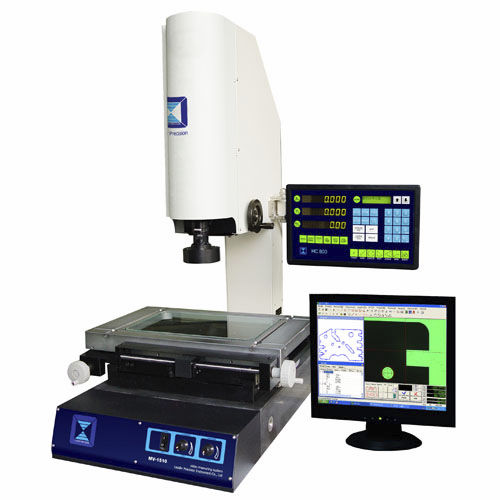

Video measuring machine
max. 400x300x200 mm | EV series Leader Precision Instrument Co. Ltd

Characteristics

  • Technology:

    video

Description

This vision measuring system is made up of a high resolution and accuracy CCS, along with continuous zoom lens and high precision linear scale and stage. The unit is a photoelectric measuring system that has a greater precision and efficiency and can be used in many precision industries. The application is perfectly suitable for molding, electronic, spring, press, tool, plastic, screw, rubber, camera, valve, motor parts, bicycle, conductor rubber, PCB, interference board, lead frame along with other precision industrial features. The solid granite frame provides strength, stability and accuracy. Precision stages are also available along with a higher linear encoder measuring .5 µm. There is superb complete colour and high resolution image having zoom optics sighting device. The cross hair generator The Unit connects via USB or RS232 and metrology software along with high resolution S-video colour CCD camera, and new metrology geometric DRO single click edge detection.
• Solid granite frame guarantees strength, accuracy and stability
• Precision stages are available
• Higher resolution linear encoder 0.5µm
• Superb full-color high resolution image with zoom optics( USA Navitar zoom lens:0.7x-4.5x)
• Sighting device: cross-hair generator
• Connection: RS232 or USB output and metrology software
• Japan 1/2" high resolution S-video color CCD camera
• New DC3000 geometric DRO
• One-click edge detection
• Accuracy: ±(2.5+L/150)µm, of which, L = length of the work piece measured ( unit: mm)
