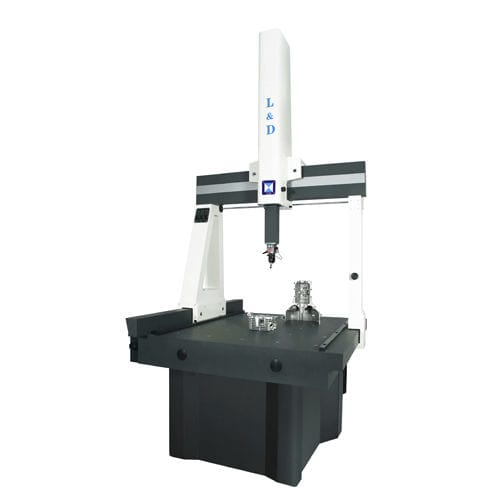

Manually-controlled coordinate measuring machine / bridge / multi-sensor / high-precision
CMM-554M Leader Precision Instrument Co. Ltd

Characteristics

  • Control:

    manually-controlled

  • Structure:

    bridge

  • Probe type:

    multi-sensor

  • Other characteristics:

    high-precision

  • X travel:

    500 mm

  • Y travel:

    Min.: 500 mm

    Max.: 800 mm

  • Z travel:

    400 mm

Description

CMM-M series Manual Coordinate Measuring machine is extensively used in the field of machinery, automobile, aviation, metal and high precision tool manufacturing. It is required for CAD, CAE and CAM in reverse engineering. Various models include CMM-554M; CMM-665M; CMM-564M; CMM-685M; CMM-574M; CMM-6105M; CMM-584M. It operates using RENISHAW MH 20i probing system and rational DMIS software. It is provided with Air bearing guidance, moving bridge structure, space accuracy Accuracy of MPEE = 4.0 + L/200 µm and offers resolution of 0.5 µm. Dimensions include 1.0 x 1.1 x 2.2; 1.14 x 1.1 x 2.4; 1.0 x 1.2 x 2.2; 1.14 x 1.3 x 2.4; 1.0 x 1.3 x 2.2; 1.14 x 1.5 x 2.4; 1.0 x 1.4 x 2.2. Machine weighs 700/770/840/910 900 /1040 /1180 kg.
