optical stereo microscope
XTD-2024 Leader Precision Instrument Co. Ltd

Add to MyDirectIndustry favorites
optical stereo microscope optical stereo microscope - XTD-2024


  • Type:


  • Magnification:

    Min.: 10 unit

    Max.: 100 unit

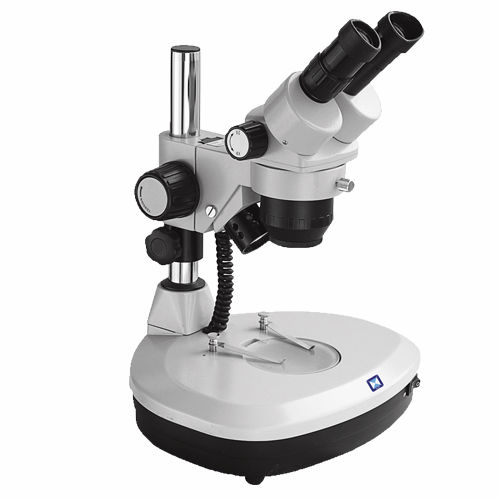

The XTD-2024, manufactured by Metrology, is a stereo microscope designed to be used for medical and health, electronics, precision machinery industry and so on, it is suited to inspect the naked IC, LCD printing paste, PC. It is equipped with an SWF10X/23 mm eyepiece and a 1X/2X 1X/3X 2X/4X lens zoom range. It has a working distance of 120 mm and an interpupillary distance of 57 - 75 mm. Its binocular tube has a 360º body rotation and a 45º inclination. It also has a ±5 diopter adjustment, a 6V 15W adjustable brightness top halogen bulb and a 5W bottom fluorescent lamp.
